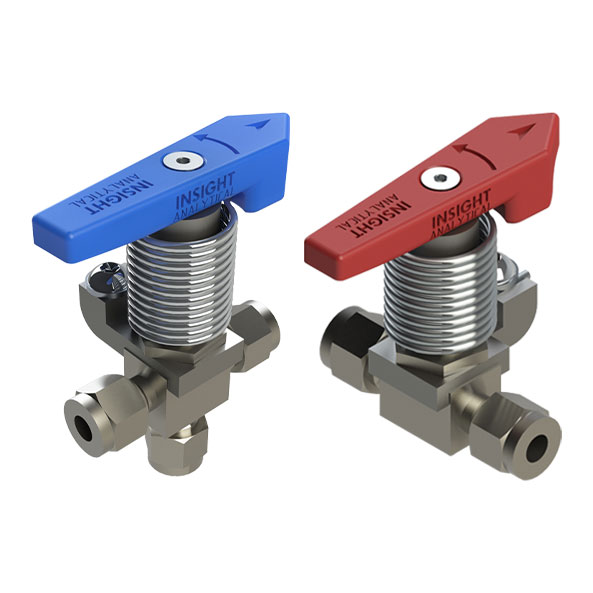

The Spring Return Valve from Insight Analytical Solutions is a safety-focused manual valve engineered for gas and liquid process systems where fail-safe positioning is critical. Available in both 2-way and 3-way configurations, each valve is designed to return automatically to a safe position unless actively held by the operator. This ensures reliable control in applications such as sample handling, stream switching, and pressure management.

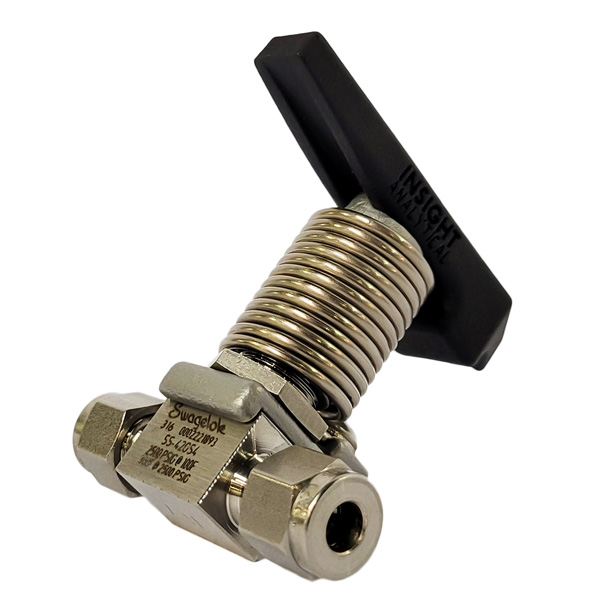

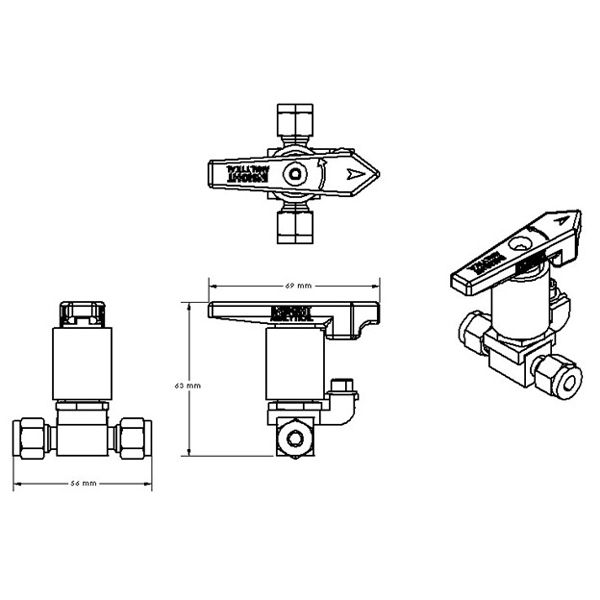

The 2-way configuration functions as a normally closed valve, opening only when manually engaged. Once released, the internal spring mechanism returns the valve to the closed position, preventing unintended flow. This makes it ideal for grab sampling, draining, and refueling applications where accidental release must be avoided.
For automated and repeatable sampling in similar applications, the Grab Sampling System provides a controlled alternative that removes operator variability.

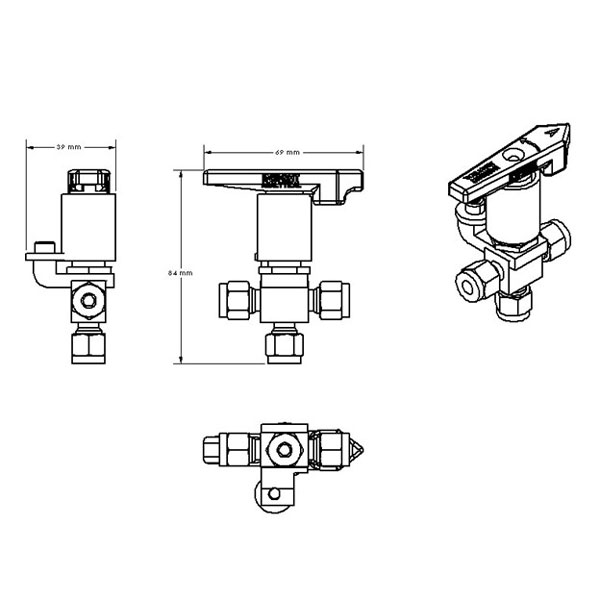

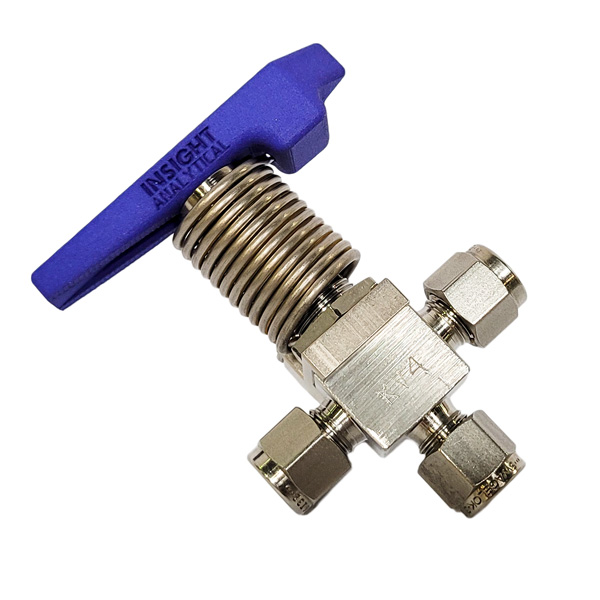

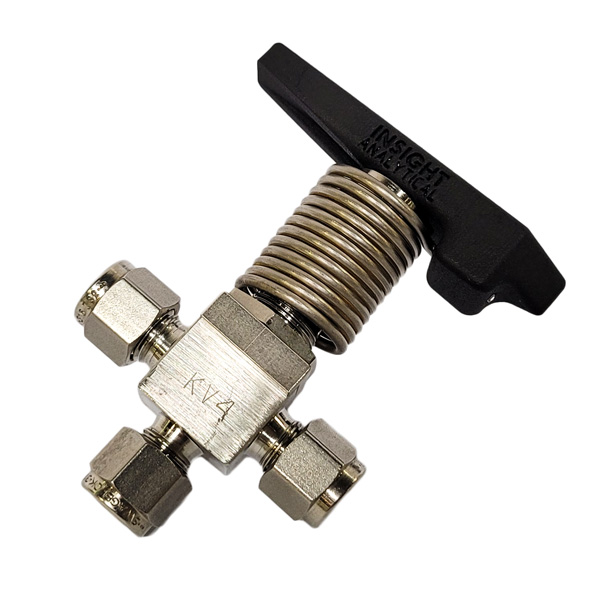

The 3-way configuration is designed for stream switching applications and defaults to a safe home position, such as vent or bypass. It only diverts flow while actively engaged, then returns automatically once released. This reduces risk in applications involving multiple sample streams or pressure routing.
For routing multiple sample streams to analyzers or devices, the Sample Distribution Panel can be integrated downstream to manage flow paths efficiently.
These valves are commonly used in grab sample stations, coalescing filter drains, and pressure gauge isolation to avoid dead legs. Their fail-safe operation improves safety by eliminating the risk of valves being left in unsafe positions.
Each Spring Return Valve features 316 stainless steel wetted parts and is available with color-coded handles for clear identification. The compact design supports installation in tight spaces while maintaining robust performance under high-pressure conditions.
By ensuring automatic return to a safe state, these valves enhance operational safety, reduce human error, and improve reliability across critical process systems.
